Япония

Модель

LEXUS LX570

VIN

Дата

2015/09

Двигатель

5,7 литра, 32 клапана, DOHC, EFI

КПП

автомат АКПП, 8 скоростей

Опции

646W

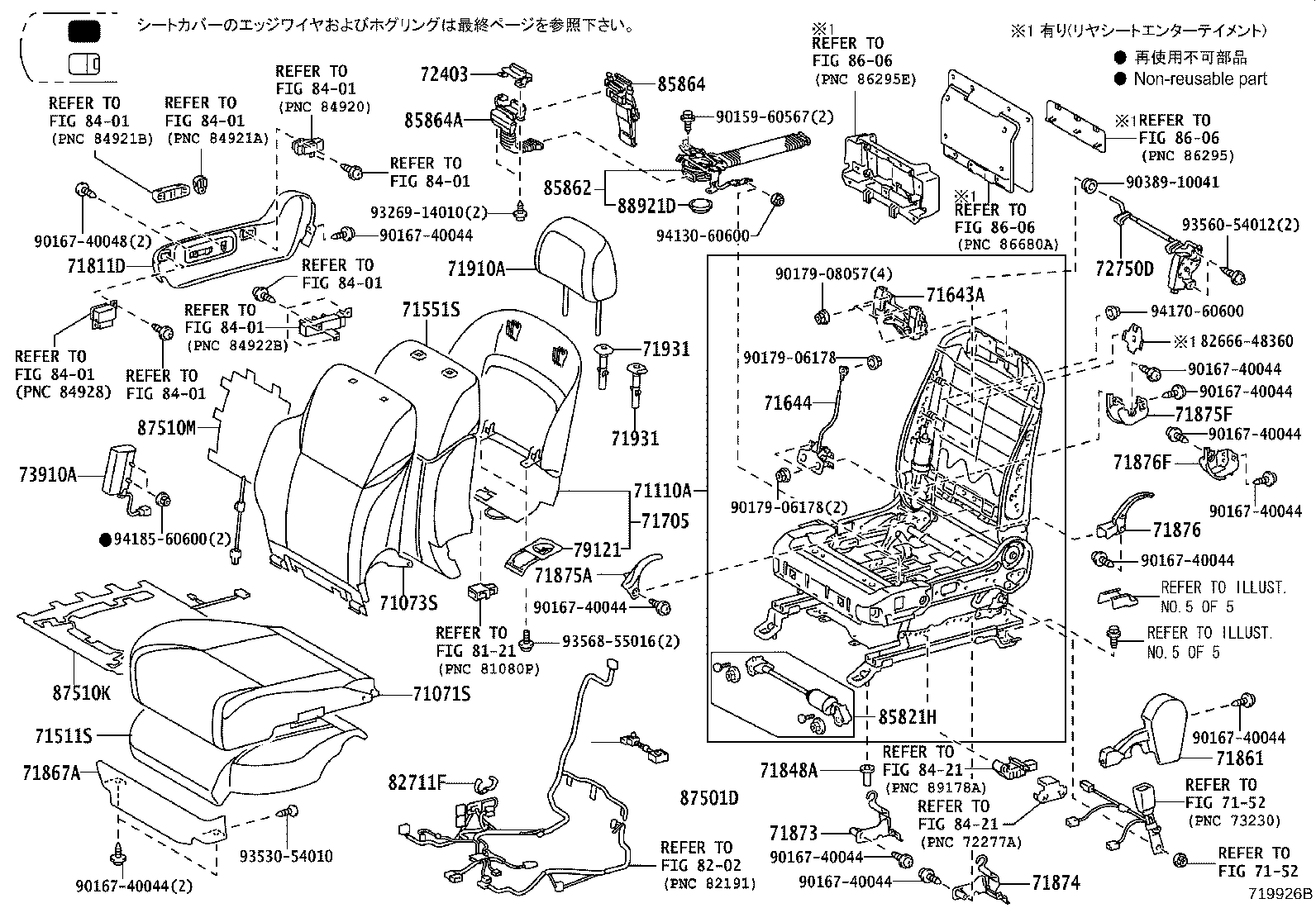

Кресла TOYOTA LEXUS LX570







Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71643A

UNIT, ACTIVE HEADREST, UPR

71644

UNIT, ACTIVE HEADREST, LWR

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72403

BRACKET SUB-ASSY, SEAT FRAME SET

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

79121

BRACKET, NO.1 SEAT CUSHION

8121

переход к группе запчастей

8202

переход к группе запчастей

8266648360

Крепеж

82711F

CLAMP, WIRING HARNESS

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

85821H

MOTOR ASSY, POWER SEAT SLIDE, RH

85862

BLOWER, SEAT CLIMATE CONTROL, RH

85864

CONTROLLER, SEAT CLIMATE CONTROL,RH

85864A

CONTROLLER, SEAT CLIMATE CONTROL, RH

8606

переход к группе запчастей

8606

переход к группе запчастей

8606

переход к группе запчастей

87501D

CONTROL SUB-ASSY, SEAT HEATER

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

88921D

FILTER, AIR, NO.1

9015960567

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740048

Крепеж

9017906178

Крепеж

9017906178

Крепеж

9017908057

Крепеж

9038910041

Крепеж

9326914010

Крепеж

9353054010

Крепеж

9356054012

Крепеж

9356855016

Крепеж

9413060600

Крепеж

9417060600

Крепеж

9418560600

Крепеж

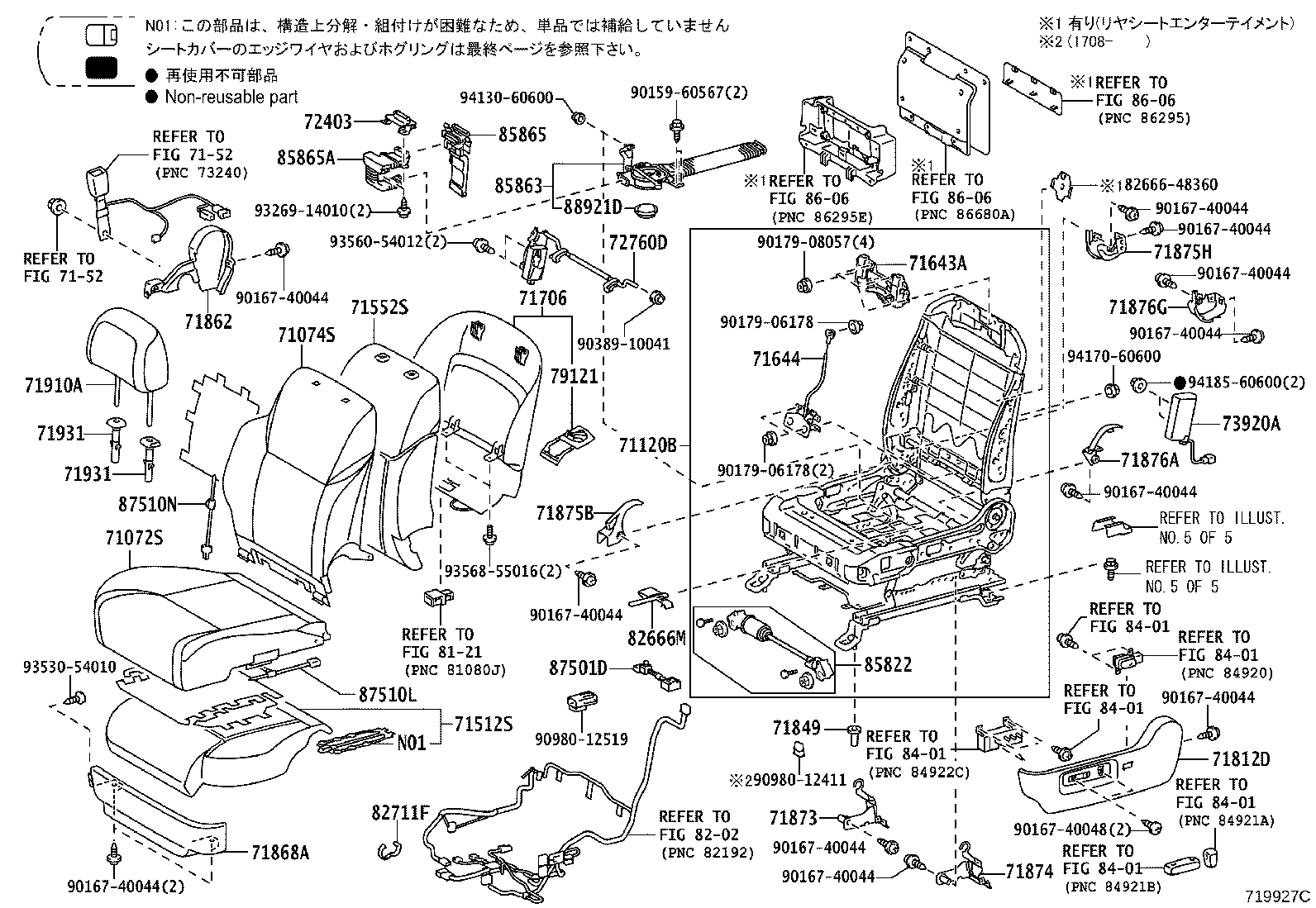

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71643A

UNIT, ACTIVE HEADREST, UPR

71644

UNIT, ACTIVE HEADREST, LWR

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71875H

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72403

BRACKET SUB-ASSY, SEAT FRAME SET

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

79121

BRACKET, NO.1 SEAT CUSHION

8121

переход к группе запчастей

8202

переход к группе запчастей

8266648360

Крепеж

82666M

HOLDER, CONNECTOR

82711F

CLAMP, WIRING HARNESS

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

85822

MOTOR ASSY, POWER SEAT SLIDE, LH

85863

BLOWER, SEAT CLIMATE CONTROL, LH

85865

CONTROLLER, SEAT CLIMATE CONTROL,LH

85865A

CONTROLLER, SEAT CLIMATE CONTROL, LH

8606

переход к группе запчастей

8606

переход к группе запчастей

8606

переход к группе запчастей

87501D

CONTROL SUB-ASSY, SEAT HEATER

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

88921D

FILTER, AIR, NO.1

9015960567

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740048

Крепеж

9017906178

Крепеж

9017906178

Крепеж

9017908057

Крепеж

9038910041

Крепеж

9098012411

Крепеж

9098012519

Крепеж

9326914010

Крепеж

9353054010

Крепеж

9356054012

Крепеж

9356855016

Крепеж

9413060600

Крепеж

9417060600

Крепеж

9418560600

Крепеж

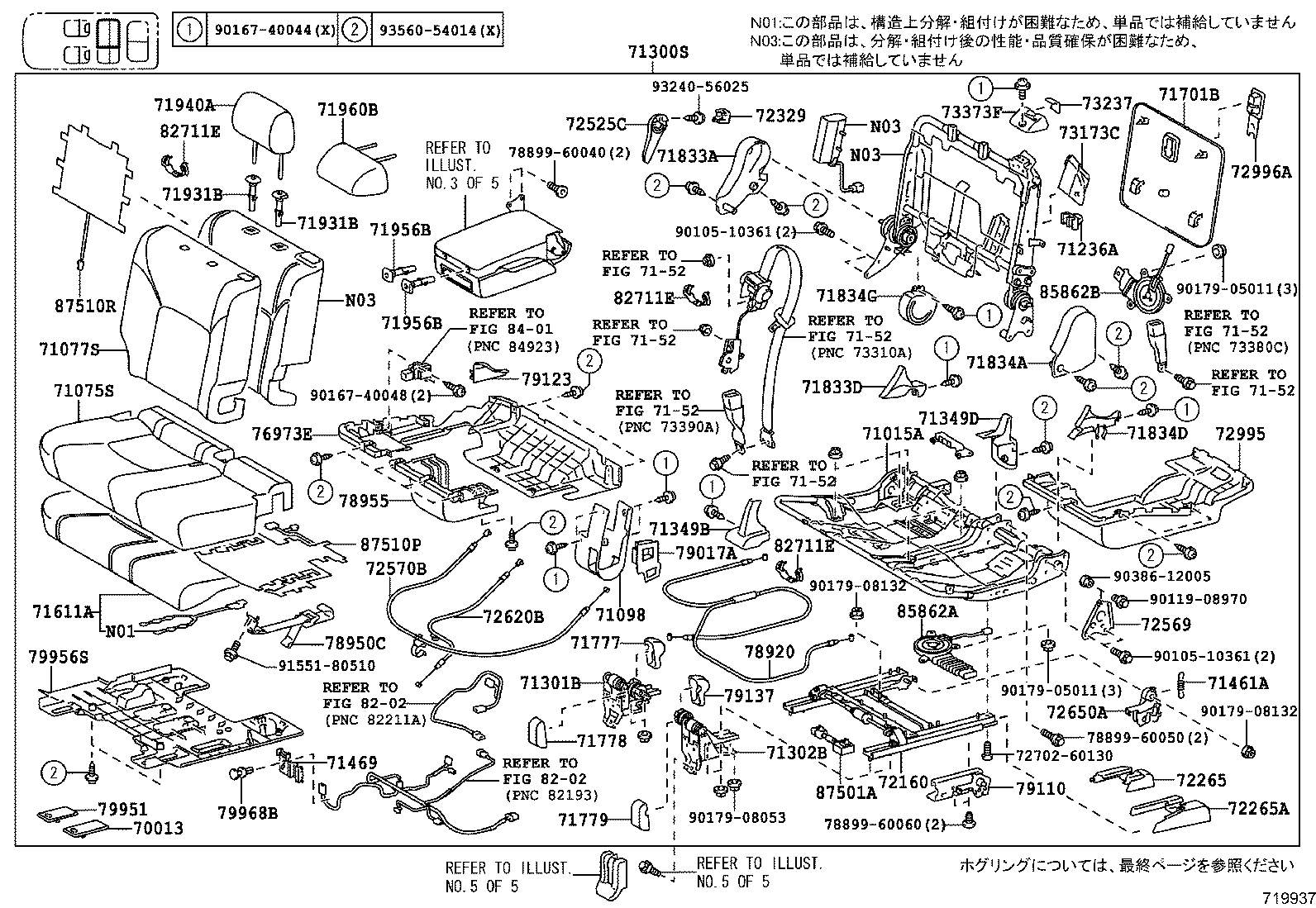

Код

Описание

70013

COVER ASSY, NO.1 SEAT CUSHION

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71098

COVER SUB-ASSY, REAR SEAT BACK, LOWER RH

71236A

CLAMP, REAR SEAT CUSHION SPRING

71300S

SEAT ASSY, REAR RH

71301B

HINGE SUB-ASSY, REAR NO.1 SEAT, RH

71302B

HINGE SUB-ASSY, REAR NO.1 SEAT, LH

71349B

COVER, REAR SEAT BACK STAY, RH

71349D

COVER, REAR SEAT BACK HINGE, RH

71461A

SPRING, REAR SEAT CUSHION, NO.1

71469

PROTECTOR, REAR SEAT, NO.2

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71611A

PAD, REAR SEAT CUSHION, RH

71701B

BOARD SUB-ASSY, REAR SEAT BACK, RH

71777

COVER, REAR SEAT SIDE HINGE FEMALE

71778

COVER, REAR SEAT SIDE HINGE MALE, RH

71779

COVER, REAR SEAT SIDE HINGE MALE, LH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833D

COVER REAR SEAT RECLINING, RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71834D

COVER, REAR SEAT RECLINING, LH

71834G

COVER, REAR SEAT RECLINING, NO.1 LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71956B

SUPPORT, REAR SEAT HEADREST

71956B

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72160

TRACK ASSY, REAR SEAT, OUTER RH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72265A

COVER, SEAT TRACK UPPER RAIL, RH

72329

COVER, SEAT ADJUSTER BOLT

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72569

PLATE, SEAT BACK STOPPER

72570B

CABLE ASSY, RECLINING ADJUSTING, RH

72620B

CABLE ASSY, REAR NO.1 SEAT LOCK

72650A

LOCK ASSY, REAR SEAT, RH

7270260130

Крепеж

72995

COVER, REAR SEAT CUSHION, RH

72996A

COVER, REAR SEAT BACK

73173C

COVER, REAR SEAT BELT HOLE, RH

73237

COVER, SHOULDER BELT ANCHOR

73373F

COVER, REAR SEAT SHOULDER BELT HOLE

76973E

COVER, REAR UNDER SIDE, RH

7889960040

Крепеж

7889960050

Крепеж

7889960060

Крепеж

78920

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2

78950C

BAND ASSY, FOLD SEAT STOPPER

78955

COVER, REAR SEAT UNDER TRAY RH

79017A

PAD SUB-ASSY, NO.1 SEAT BACK, RH

79110

LEG ASSY, NO.1 SEAT

79123

PLATE, NO.1 SEAT CUSHION

79137

COVER, NO.1 SEAT HINGE

79951

COVER, NO.1 SEAT CUSHION

79956S

COVER, REAR SEAT LEG SIDE

79968B

CLIP

8202

переход к группе запчастей

8202

переход к группе запчастей

82711E

CLAMP, WIRING HARNESS

82711E

CLAMP, WIRING HARNESS

82711E

CLAMP, WIRING HARNESS

8401

переход к группе запчастей

85862A

BLOWER, REAR SEAT CLIMATE CONTROL, RH

85862B

BLOWER, SEAT CLIMATE CONTROL, RH

87501A

CONTROL SUB-ASSY, SEAT HEATER, RH

87510P

HEATER ASSY, SEAT

87510R

HEATER ASSY, SEAT

9010510361

Крепеж

9010510361

Крепеж

9011908970

Крепеж

9016740044

Крепеж

9016740048

Крепеж

9017905011

Крепеж

9017905011

Крепеж

9017908053

Крепеж

9017908132

Крепеж

9017908132

Крепеж

9038612005

Крепеж

9155180510

Крепеж

9324056025

Крепеж

9356054014

Крепеж

Код

Описание

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71236A

CLAMP, REAR SEAT CUSHION SPRING

71301D

HINGE SUB-ASSY, REAR SEAT, RH

71302D

HINGE SUB-ASSY, REAR SEAT, LH

71400S

SEAT ASSY, REAR, LH (FOR SEPARATE TYPE)

71461A

SPRING, REAR SEAT CUSHION, NO.1

71461A

SPRING, REAR SEAT CUSHION, NO.1

71469

PROTECTOR, REAR SEAT, NO.2

7152

переход к группе запчастей

7152

переход к группе запчастей

71612A

PAD, REAR SEAT CUSHION, LH

71702B

BOARD SUB-ASSY, REAR SEAT BACK, LH

71777

COVER, REAR SEAT SIDE HINGE FEMALE

71778

COVER, REAR SEAT SIDE HINGE MALE, RH

71779

COVER, REAR SEAT SIDE HINGE MALE, LH

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71833E

COVER, REAR SEAT RECLINING, NO.3 RH

71833H

COVER, REAR SEAT RECLINING, NO.1 RH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71834C

COVER, REAR SEAT RECLINING, NO.3 LH

71834G

COVER, REAR SEAT RECLINING, NO.1 LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72170

TRACK ASSY, REAR SEAT, OUTER LH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72266A

COVER, SEAT TRACK UPPER RAIL, LH

72329B

COVER, SEAT ADJUSTER BOLT, NO.1

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72580A

CABLE ASSY, RECLINING ADJUSTING, LH

72620B

CABLE ASSY, REAR NO.1 SEAT LOCK

72650A

LOCK ASSY, REAR SEAT, RH

72660F

LOCK ASSY, REAR SEAT, LH

7270260130

Крепеж

72995A

COVER, REAR SEAT

72996A

COVER, REAR SEAT BACK

76974E

COVER, REAR UNDER SIDE, LH

78910

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1

78950C

BAND ASSY, FOLD SEAT STOPPER

78956

COVER, REAR SEAT UNDER TRAY LH

79123A

PLATE, NO.1 SEAT CUSHION

79137

COVER, NO.1 SEAT HINGE

79951

COVER, NO.1 SEAT CUSHION

79951

COVER, NO.1 SEAT CUSHION

79965

COVER, REAR SEAT LEG SIDE, NO.2

79968B

CLIP

8202

переход к группе запчастей

8202

переход к группе запчастей

82711E

CLAMP, WIRING HARNESS

8401

переход к группе запчастей

85863A

BLOWER, SEAT CLIMATE CONTROL, LH

85863B

BLOWER, SEAT CLIMATE CONTROL, LH

87501B

CONTROL SUB-ASSY, SEAT HEATER, LH

87510Q

HEATER ASSY, SEAT

87510R

HEATER ASSY, SEAT

9010510361

Крепеж

9010510361

Крепеж

9016740044

Крепеж

9016740048

Крепеж

9017905011

Крепеж

9017905011

Крепеж

9017908132

Крепеж

9017908132

Крепеж

9017908132

Крепеж

9155180510

Крепеж

9324056025

Крепеж

9356054014

Крепеж

Код

Описание

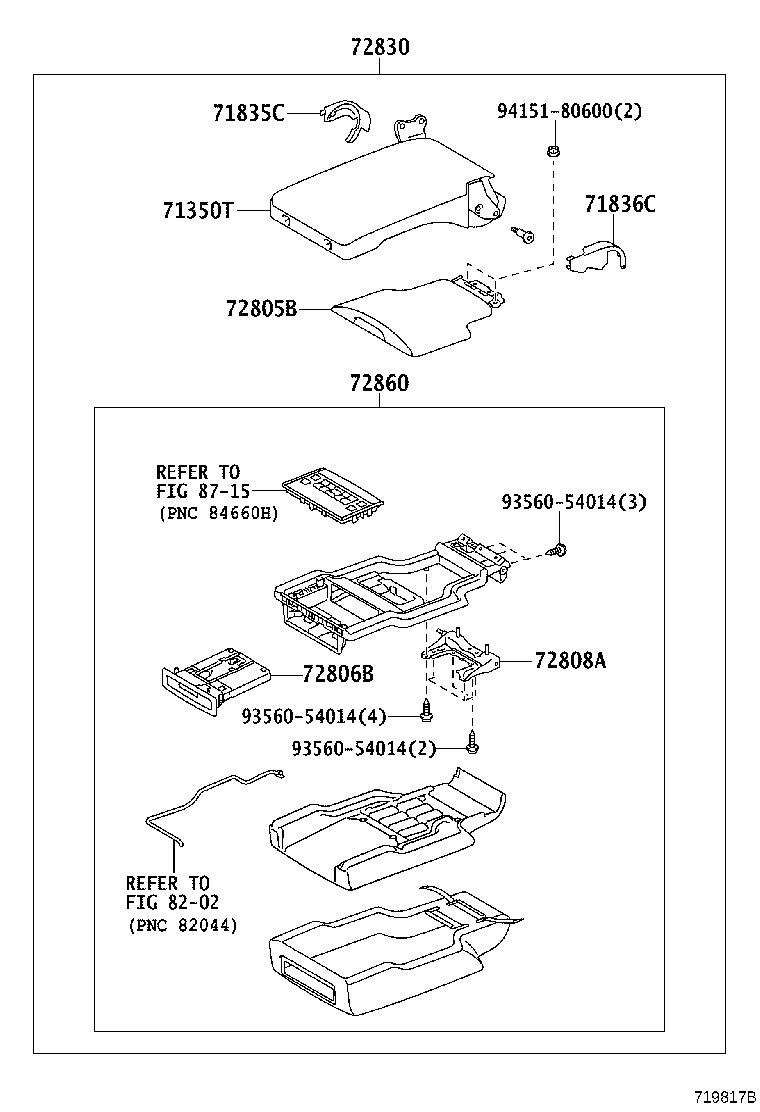

71350T

BACK ASSY, CENTER SEAT

71835C

MOULDING, REAR SEAT BACK, RH

71836C

MOULDING, REAR SEAT BACK, LH

72805B

DOOR SUB-ASSY, REAR SEAT CENTER ARMREST

72806B

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72808A

BRACKET SUB-ASSY, SEAT CENTER ARMREST

72830

ARMREST ASSY, REAR SEAT, CENTER

72860

BOX ASSY, REAR SEAT CENTER ARMREST

8202

переход к группе запчастей

8715

переход к группе запчастей

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9415180600

Крепеж

Код

Описание

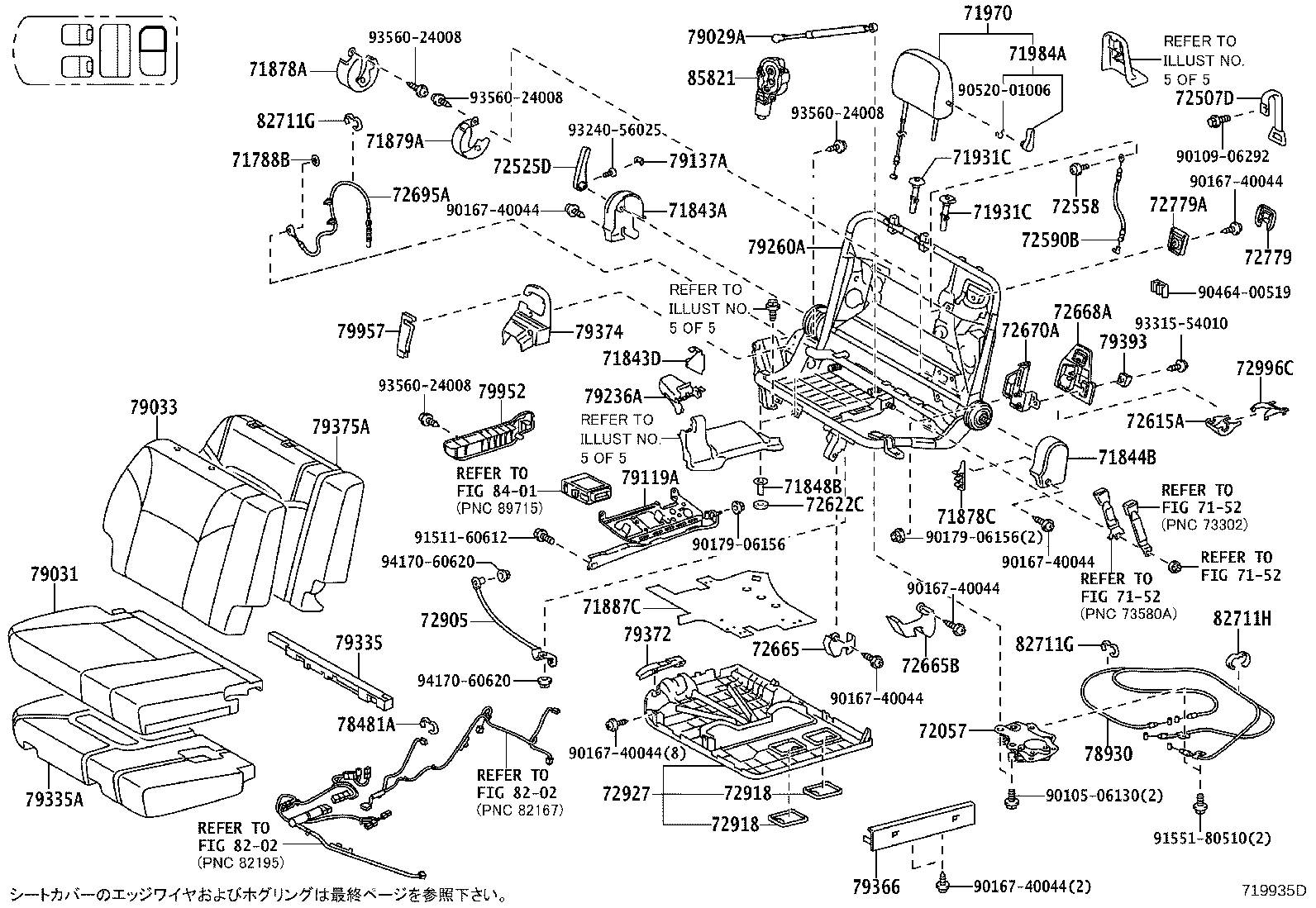

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71788B

WASHER, FRONT SEAT BACK BOARD SETTING

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71843D

COVER, REAR SEAT RECLINING, NO.2 RH

71844B

COVER, RECLINING ADJUSTER, LH

71848B

CAP, SEAT ADJUSTER COVER, RH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71878C

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71887C

CARPET, REAR SEAT CUSHION

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

71984A

HANDLE, REAR SEAT HEADREST

72057

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

72507D

HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE

72525D

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH

72558

STOPPER, RECLINING

72590B

CABLE ASSY, RECLINING REMOTE CONTROL

72615A

COVER, REAR SEAT BACK LOCK STRIKER, RH

72622C

BUSH, REAR SEAT BACK PROTECTOR SHAFT

72665

COVER, REAR SEAT BACK LOCK, RH

72665B

COVER, REAR SEAT BACK LOCK

72668A

BEZEL, REAR SEAT BACK LOCK, LOWER

72670A

STRIKER ASSY, REAR SEAT BACK LOCK, RH

72695A

CABLE, REAR SEAT LOCK CONTROL

72779

GUIDE, REAR SEAT HINGE PAWL

72779A

GUIDE, REAR SEAT HINGE PAWL

72905

LINK SUB-ASSY, 3RD SEAT, RH

72918

COVER, 3RD SEAT CUSHION LOCK

72918

COVER, 3RD SEAT CUSHION LOCK

72927

COVER, REAR SEAT CUSHION UNDER, RH

72996C

COVER, REAR NO.2 SEAT BACK, RH

78481A

CLAMP(REAR SEAT)

78930

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3

79029A

STAY SUB-ASSY, NO.2 SEAT

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79119A

BRACKET, REAR NO.2 SEAT LEG, REAR RH

79137A

COVER, NO.2 SEAT HINGE

79236A

COVER, NO.2 SEAT LEG

79260A

SPRING ASSY, NO.2 SEAT CUSHION, RH

79335

PAD, NO.3 SEAT CUSHION

79335A

PAD, NO.3 SEAT CUSHION, RH

79366

COVER, NO.3 SEAT LEG, NO.1

79372

COVER, NO.3 SEAT FRONT BRACKET, RH

79374

COVER, NO.3 SEAT LEG, REAR RH

79375A

PAD, NO.3 SEAT BACK, RH

79393

CUSHION, REAR NO.2 SEAT BACK

79952

COVER, NO.2 SEAT CUSHION

79957

COVER, REAR SEAT REAR BRACKET, REAR

8202

переход к группе запчастей

8202

переход к группе запчастей

82711G

CLAMP, WIRING HARNESS

82711G

CLAMP, WIRING HARNESS

82711H

CLAMP, WIRING HARNESS

8401

переход к группе запчастей

85821

MOTOR ASSY, POWER SEAT

9010506130

Крепеж

9010906292

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017906156

Крепеж

9017906156

Крепеж

9046400519

Крепеж

9052001006

Крепеж

9151160612

Крепеж

9155180510

Крепеж

9324056025

Крепеж

9331554010

Крепеж

9356024008

Крепеж

9356024008

Крепеж

9356024008

Крепеж

9356024008

Крепеж

9417060620

Крепеж

9417060620

Крепеж

Код

Описание

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71788B

WASHER, FRONT SEAT BACK BOARD SETTING

71843C

COVER, RECLINING ADJUSTER, RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71844C

COVER, REAR SEAT RECLINING, NO.2 LH

71849A

CAP, SEAT ADJUSTER COVER, LH

71878B

COVER, REAR SEAT RECLINING, INNER RH

71879B

COVER, REAR SEAT RECLINING, INNER LH

71879C

COVER, REAR SEAT RECLINING, INNER LH

71887C

CARPET, REAR SEAT CUSHION

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71950F

HEADREST ASSY, REAR NO.2 SEAT, LH

71970

HEADREST ASSY, REAR SEAT

71984A

HANDLE, REAR SEAT HEADREST

72058A

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

72507D

HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE

72526C

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH

72558

STOPPER, RECLINING

72590B

CABLE ASSY, RECLINING REMOTE CONTROL

72616A

COVER, REAR SEAT BACK LOCK STRIKER, LH

72622C

BUSH, REAR SEAT BACK PROTECTOR SHAFT

72666

COVER, REAR SEAT BACK LOCK, LH

72666B

COVER, REAR SEAT LOCK, LH

72668A

BEZEL, REAR SEAT BACK LOCK, LOWER

72680A

STRIKER ASSY, REAR SEAT BACK LOCK, LH

72695A

CABLE, REAR SEAT LOCK CONTROL

72779

GUIDE, REAR SEAT HINGE PAWL

72779A

GUIDE, REAR SEAT HINGE PAWL

72906

LINK SUB-ASSY, 3RD SEAT, LH

72918

COVER, 3RD SEAT CUSHION LOCK

72918

COVER, 3RD SEAT CUSHION LOCK

72928

COVER, REAR SEAT CUSHION UNDER, LH

72997C

COVER, REAR NO.2 SEAT BACK, LH

78481A

CLAMP(REAR SEAT)

78930

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3

79029A

STAY SUB-ASSY, NO.2 SEAT

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79137A

COVER, NO.2 SEAT HINGE

79139A

BRACKET, REAR NO.2 SEAT LEG, REAR LH

79246A

COVER, NO.2 SEAT LEG, NO.2

79270A

SPRING ASSY, NO.2 SEAT CUSHION, LH

79335

PAD, NO.3 SEAT CUSHION

79345A

PAD, NO.3 SEAT CUSHION, LH

79367

COVER, NO.3 SEAT LEG, NO.2

79382

COVER, NO.3 SEAT FRONT BRACKET, LH

79384

COVER, NO.3 SEAT LEG, REAR LH

79385A

PAD, NO.3 SEAT BACK, LH

79393

CUSHION, REAR NO.2 SEAT BACK

79952

COVER, NO.2 SEAT CUSHION

79958A

COVER, REAR SEAT REAR BRACKET, LH

8202

переход к группе запчастей

8202

переход к группе запчастей

82711G

CLAMP, WIRING HARNESS

82711G

CLAMP, WIRING HARNESS

82711H

CLAMP, WIRING HARNESS

8401

переход к группе запчастей

85821A

MOTOR ASSY, POWER SEAT

9010506130

Крепеж

9010906292

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017906156

Крепеж

9017906156

Крепеж

9046400519

Крепеж

9052001006

Крепеж

9151160612

Крепеж

9155180510

Крепеж

9324056025

Крепеж

9331554010

Крепеж

9356024008

Крепеж

9356024008

Крепеж

9356024008

Крепеж

9356024008

Крепеж

9356024008

Крепеж

9417060620

Крепеж

9417060620

Крепеж

Код

Описание

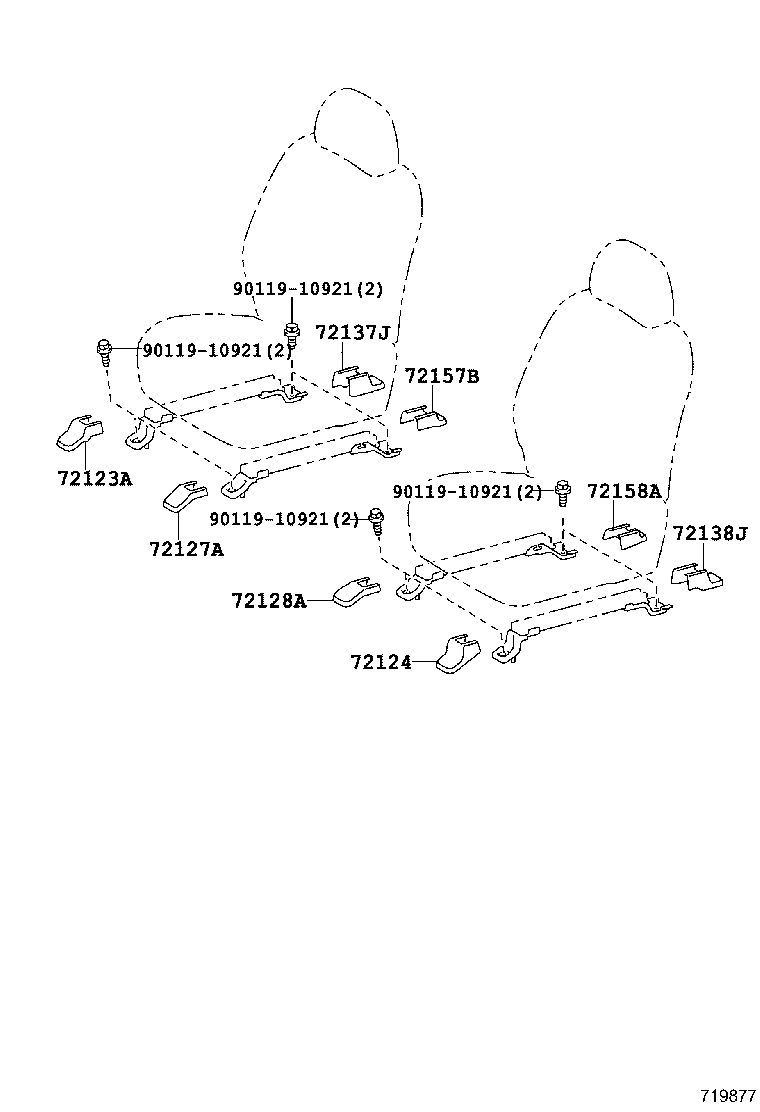

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72157B

COVER, REAR SEAT TRACK BRACKET, INNER RH

72158A

COVER, REAR SEAT TRACK BRACKET, INNER LH

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

Код

Описание

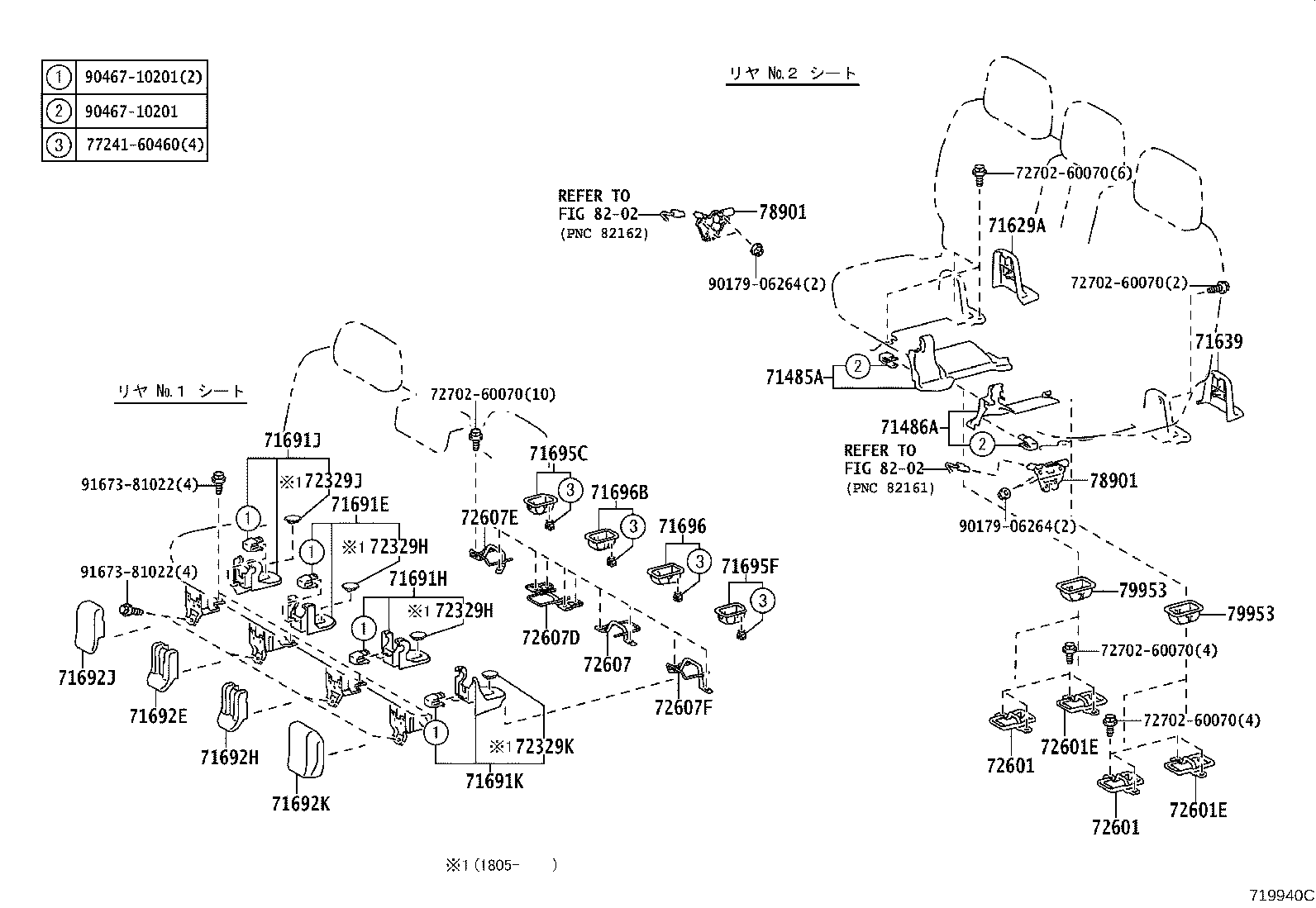

71485A

COVER, REAR SEAT HINGE, NO.2 RH

71486A

COVER, REAR SEAT HINGE, NO.2 LH

71629A

COVER, REAR SEAT CUSHION HINGE, RH

71639

COVER, REAR SEAT CUSHION HINGE, LH

71691E

COVER, REAR SEAT CUSHION HINGE, NO.1

71691H

COVER, REAR SEAT CUSHION HINGE, NO.2

71691J

COVER, REAR SEAT CUSHION HINGE, NO.3

71691K

COVER, REAR SEAT CUSHION HINGE, NO.4

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71692H

COVER, REAR SEAT CUSHION HINGE, NO.3

71692J

COVER, REAR SEAT CUSHION HINGE, NO.4

71692K

COVER, REAR SEAT CUSHION HINGE, NO.5

71695C

PROTECTOR, REAR SEAT, NO.1

71695F

PROTECTOR, REAR SEAT, NO.1

71696

PROTECTOR, REAR SEAT, NO.2

71696B

PROTECTOR, REAR SEAT, NO.2

72329H

COVER, SEAT ADJUSTER BOLT, NO.1

72329H

COVER, SEAT ADJUSTER BOLT, NO.1

72329J

COVER, SEAT ADJUSTER BOLT, NO.2

72329K

COVER, SEAT ADJUSTER BOLT, NO.3

72601

STRIKER SUB-ASSY, REAR SEAT LOCK

72601

STRIKER SUB-ASSY, REAR SEAT LOCK

72601E

STRIKER SUB-ASSY, REAR SEAT LOCK, NO.2

72601E

STRIKER SUB-ASSY, REAR SEAT LOCK, NO.2

72607

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK

72607D

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.2

72607E

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.3

72607F

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.4

7270260070

Крепеж

7270260070

Крепеж

7270260070

Крепеж

7270260070

Крепеж

7270260070

Крепеж

7724160460

Крепеж

78901

LOCK SUB-ASSY, FOLD SEAT LEG

78901

LOCK SUB-ASSY, FOLD SEAT LEG

79953

COVER, NO.3 SEAT CUSHION

79953

COVER, NO.3 SEAT CUSHION

8202

переход к группе запчастей

8202

переход к группе запчастей

9017906264

Крепеж

9017906264

Крепеж

9046710201

Крепеж

9046710201

Крепеж

9167381022

Крепеж

9167381022

Крепеж

Код

Описание

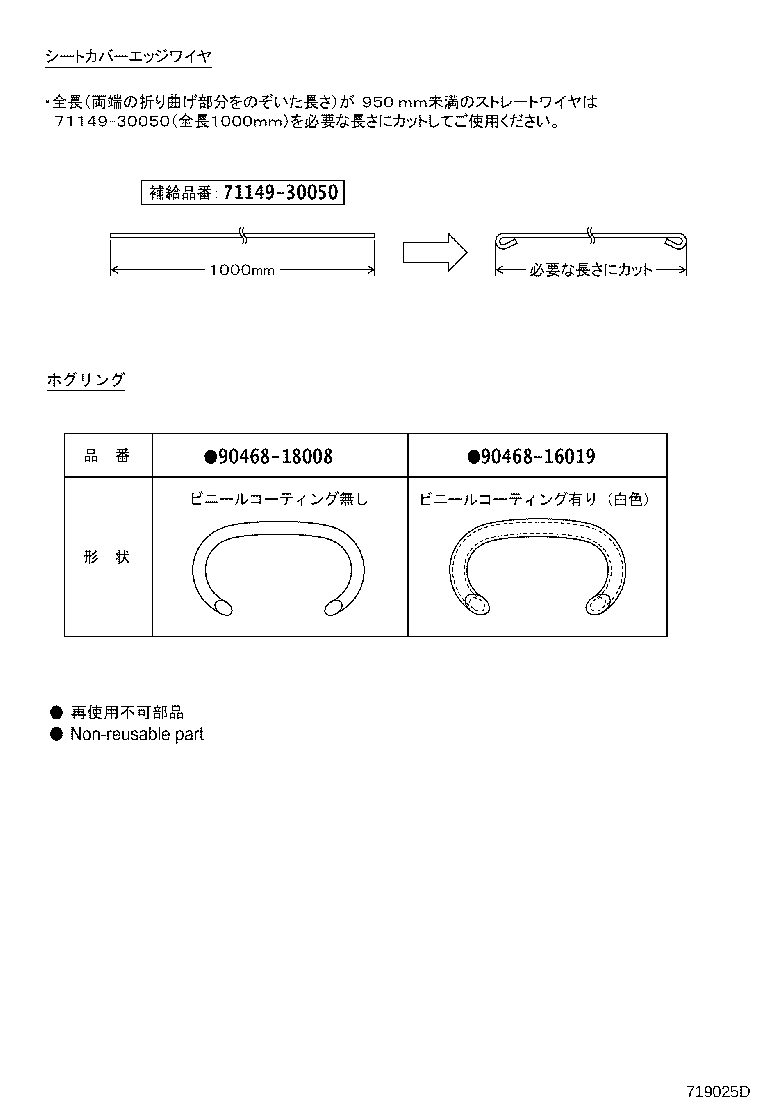

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж

> Запчасти Lexus LX > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
