1104
переход к группе запчастей
1104
переход к группе запчастей

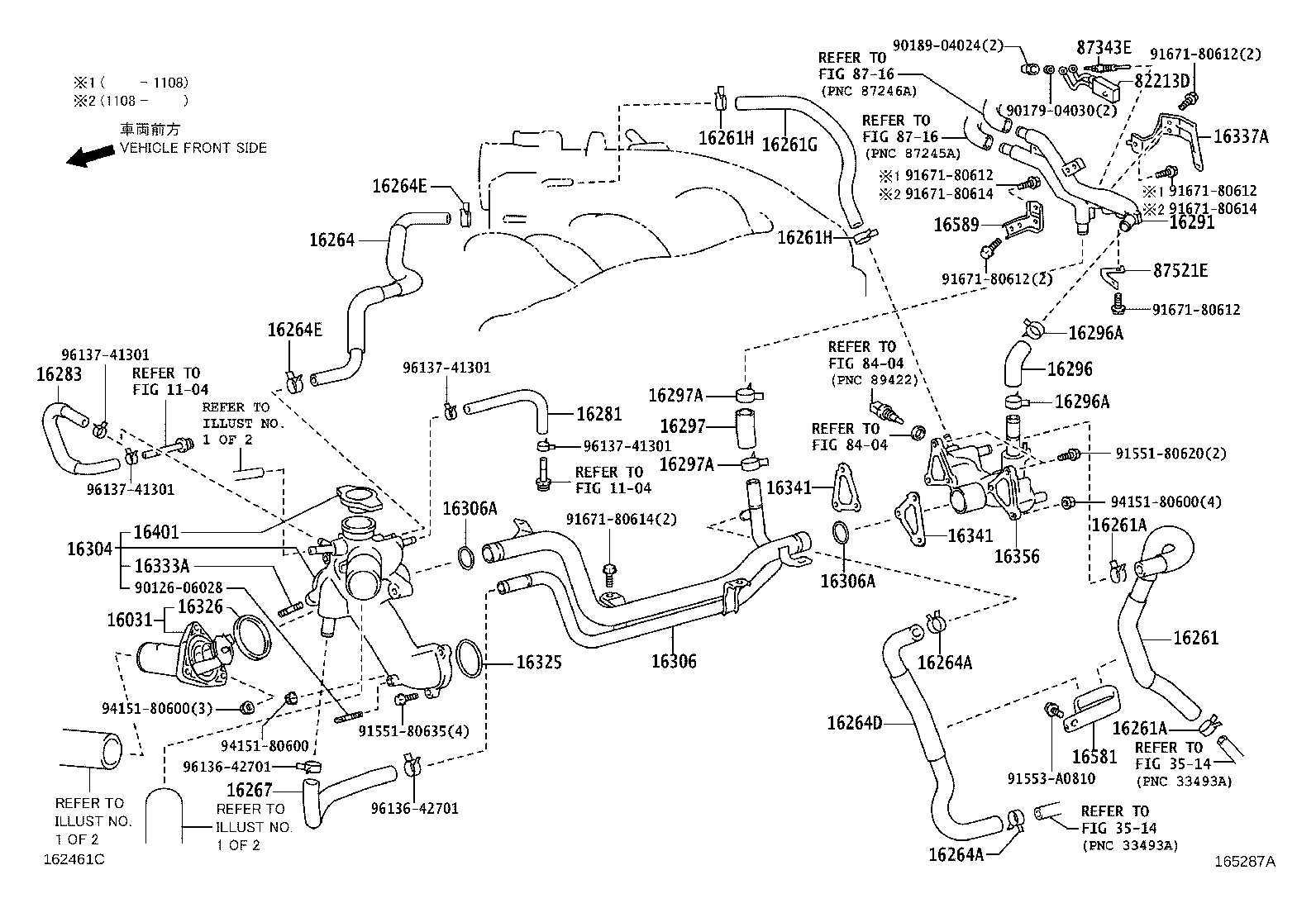

16031
WATER INLET SUB-ASSY, W/THERMOSTAT
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264D
HOSE, WATER BY-PASS, NO.2
16264E
CLIP(FOR WATER BY-PASS HOSE NO.2)
16264E
CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16281
HOSE, WATER BY-PASS, NO.4
16283
HOSE, WATER BY-PASS, NO.6
16296
HOSE, WATER BY-PASS, NO.8
16296A
CLIP(FOR WATER BY-PASS HOSE NO.8)
16296A
CLIP(FOR WATER BY-PASS HOSE NO.8)
16297
HOSE, WATER BY-PASS, NO.9
16297A
CLIP(FOR WATER BY-PASS HOSE NO.9)
16297A
CLIP(FOR WATER BY-PASS HOSE NO.9)
16304
OUTLET SUB-ASSY, WATER
16306
PIPE SUB-ASSY, WATER OUTLET
16306A
RING, O(FOR WATER OUTLET PIPE)
16306A
RING, O(FOR WATER OUTLET PIPE)
16325
GASKET, WATER INLET HOUSING, NO.1
16326
GASKET, WATER INLET HOUSING, NO.2
16333A
BOLT, STUD(FOR WATER OUTLET HOUSING)
16337A
STAY, WATER OUTLET
16341
GASKET, WATER OUTLET
16341
GASKET, WATER OUTLET
16356
JOINT, WATER BY-PASS, REAR
16401
CAP SUB-ASSY, RADIATOR
16581
CLAMP, HOSE(FOR WATER HOSE)
3514
переход к группе запчастей
3514
переход к группе запчастей
82213D
WIRE, HEATER BLOWER
8404
переход к группе запчастей
8404
переход к группе запчастей
8716
переход к группе запчастей
8716
переход к группе запчастей
87343E
PLUG, WATER BY-PASS GLOW
87521E
BRACKET,ENGINE BLOCK HEATER
