Ближний Восток

Модель

LEXUS ES300

VIN

Дата

1992/03

Двигатель

3 литра, 24 клапана, DOHC, EFI

Опции

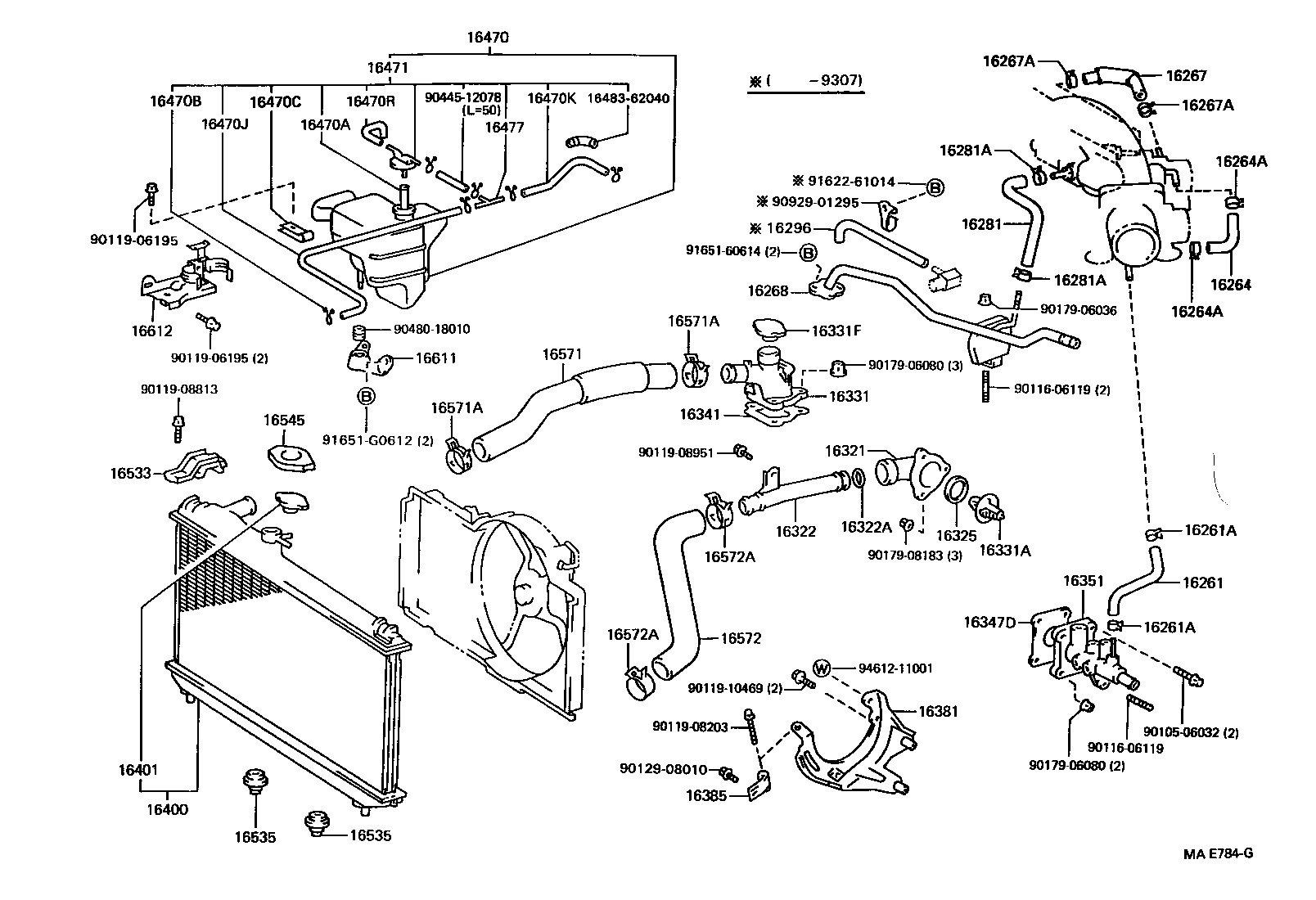

Радиатор и шланги TOYOTA LEXUS ES300







Код

Описание

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16296

HOSE, WATER BY-PASS, NO.8

16321

INLET, WATER

16322

PIPE, WATER INLET

16322A

RING, O(FOR WATER INLET)

16325

GASKET, WATER INLET HOUSING, NO.1

16331

OUTLET, WATER

16331A

THERMOSTAT

16331F

CAP SUB-ASSY(FOR WATER OUTLET)

16341

GASKET, WATER OUTLET

16347D

GASKET, WATER BY-PASS

16351

OUTLET, WATER BY-PASS

16381

BAR, FAN BELT ADJUSTING

16385

SLIDER, FAN BELT ADJUSTING

16400

RADIATOR ASSY

16401

CAP SUB-ASSY, RADIATOR

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470C

BRACKET(FOR RADIATOR RESERVE TANK)

16470J

HOSE, NO.3(FOR RADIATOR RESERVE TANK)

16470K

HOSE, NO.4(FOR RADIATOR RESERVE TANK)

16470R

HOSE, NO.2(FOR RADIATOR RESERVE TANK)

16471

CAP SUB-ASSY, RESERVE TANK

16477

PIPE(FOR RADIATOR RESERVE TANK)

1648362040

Крепеж

16533

SUPPORT, RADIATOR, UPPER

16535

SUPPORT, RADIATOR, LOWER

16535

SUPPORT, RADIATOR, LOWER

16545

COVER, RADIATOR CAP

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16611

BRACKET, RADIATOR RESERVE TANK

16612

BRACKET, RADIATOR RESERVE TANK, NO.2

9010506032

Крепеж

9011606119

Крепеж

9011606119

Крепеж

9011906195

Крепеж

9011906195

Крепеж

9011908203

Крепеж

9011908813

Крепеж

9011908951

Крепеж

9011910469

Крепеж

9012908010

Крепеж

9017906036

Крепеж

9017906080

Крепеж

9017906080

Крепеж

9017908183

Крепеж

9044512078

Крепеж

9048018010

Крепеж

9092901295

Крепеж

9162261014

Крепеж

9165160614

Крепеж

91651G0612

Крепеж

9461211001

Крепеж

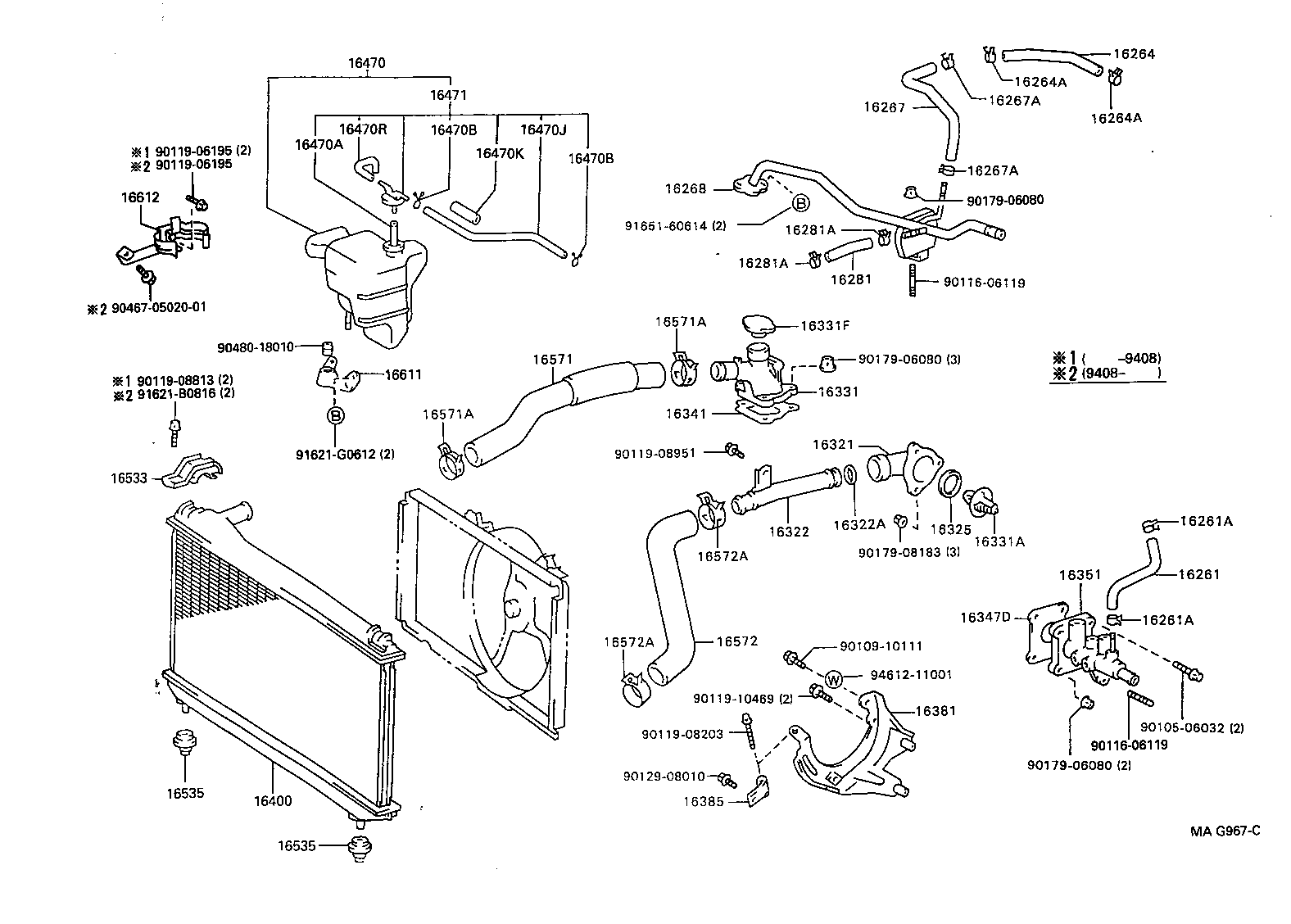

Код

Описание

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16321

INLET, WATER

16322

PIPE, WATER INLET

16322A

RING, O(FOR WATER INLET)

16325

GASKET, WATER INLET HOUSING, NO.1

16331

OUTLET, WATER

16331A

THERMOSTAT

16331F

CAP SUB-ASSY(FOR WATER OUTLET)

16341

GASKET, WATER OUTLET

16347D

GASKET, WATER BY-PASS

16351

OUTLET, WATER BY-PASS

16381

BAR, FAN BELT ADJUSTING

16385

SLIDER, FAN BELT ADJUSTING

16400

RADIATOR ASSY

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470J

HOSE, NO.3(FOR RADIATOR RESERVE TANK)

16470K

HOSE, NO.4(FOR RADIATOR RESERVE TANK)

16470R

HOSE, NO.2(FOR RADIATOR RESERVE TANK)

16471

CAP SUB-ASSY, RESERVE TANK

16533

SUPPORT, RADIATOR, UPPER

16535

SUPPORT, RADIATOR, LOWER

16535

SUPPORT, RADIATOR, LOWER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16611

BRACKET, RADIATOR RESERVE TANK

16612

BRACKET, RADIATOR RESERVE TANK, NO.2

9010506032

Крепеж

9010910111

Крепеж

9011606119

Крепеж

9011606119

Крепеж

9011906195

Крепеж

9011906195

Крепеж

9011908203

Крепеж

9011908813

Крепеж

9011908951

Крепеж

9011910469

Крепеж

9012908010

Крепеж

9017906080

Крепеж

9017906080

Крепеж

9017906080

Крепеж

9017908183

Крепеж

904670502001

Крепеж

9048018010

Крепеж

91621B0816

Крепеж

91621G0612

Крепеж

9165160614

Крепеж

9461211001

Крепеж

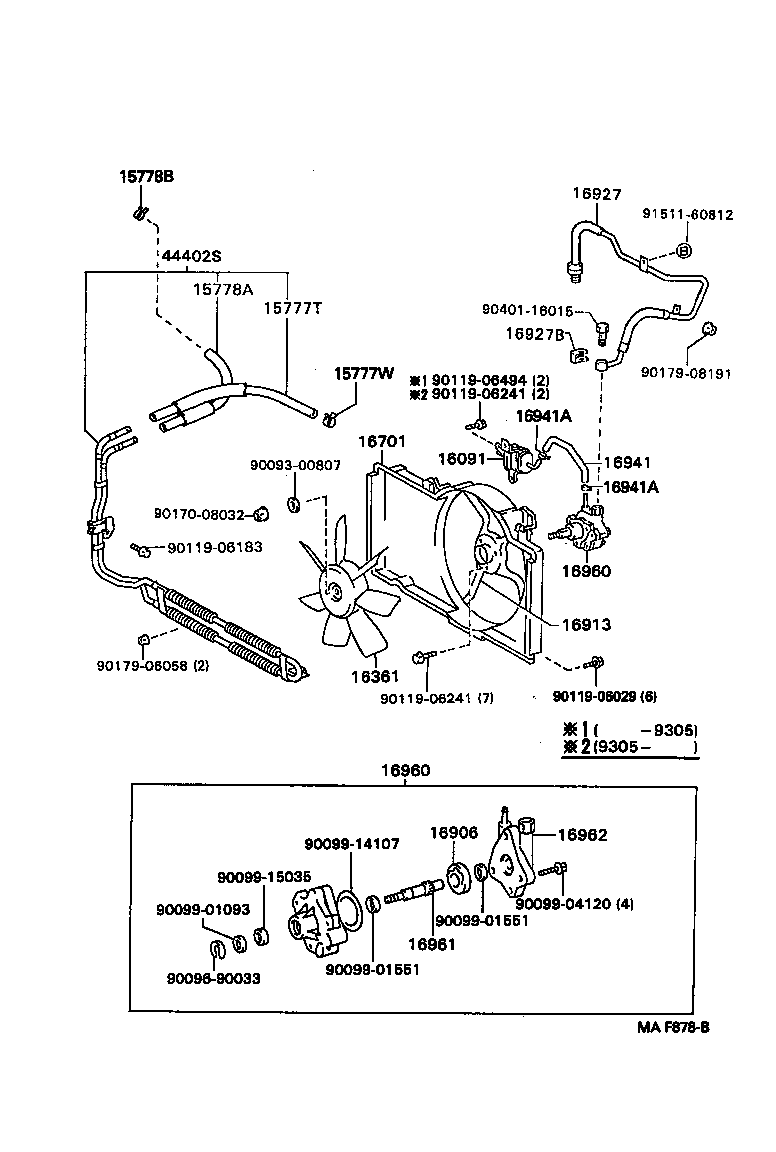

Код

Описание

15777T

HOSE, OIL COOLER, NO.1

15777W

CLIP(FOR OIL RETURN HOSE)

15778A

CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE, NO.2)

15778B

CLIP(FOR OIL RETURN HOSE)

16091

FILTER SUB-ASSY, HYDRAULIC MOTER OIL

16361

FAN

16701

SHROUD SUB-ASSY, FAN

16906

GEAR SET, HYDRAULIC

16913

STAY, HYDRAULIC MOTOR FAN SHROUD

16927

HOSE, HYDRAULIC MOTOR PRESSURE

16927B

GASKET(FOR PRESSURE HOSE)

16941

HOSE, HYDRAULIC MOTOR RETURN, NO.1

16941A

CLIP(FOR RETURN NO.1)

16941A

CLIP(FOR RETURN NO.1)

16960

MOTOR ASSY, HYDRAULIC GEAR

16960

MOTOR ASSY, HYDRAULIC GEAR

16961

SHAFT, HYDRAULIC GEAR MOTOR

16962

COVER, HYDRAULIC GEAR MOTOR

44402S

COOLER SUB-ASSY, OIL

9009300807

Крепеж

9009690033

Крепеж

9009901093

Крепеж

9009901551

Крепеж

9009901551

Крепеж

9009904120

Крепеж

9009914107

Крепеж

9009915035

Крепеж

9011906029

Крепеж

9011906183

Крепеж

9011906241

Крепеж

9011906241

Крепеж

9011906494

Крепеж

9017008032

Крепеж

9017906058

Крепеж

9017908191

Крепеж

9040116015

Крепеж

9151160812

Крепеж

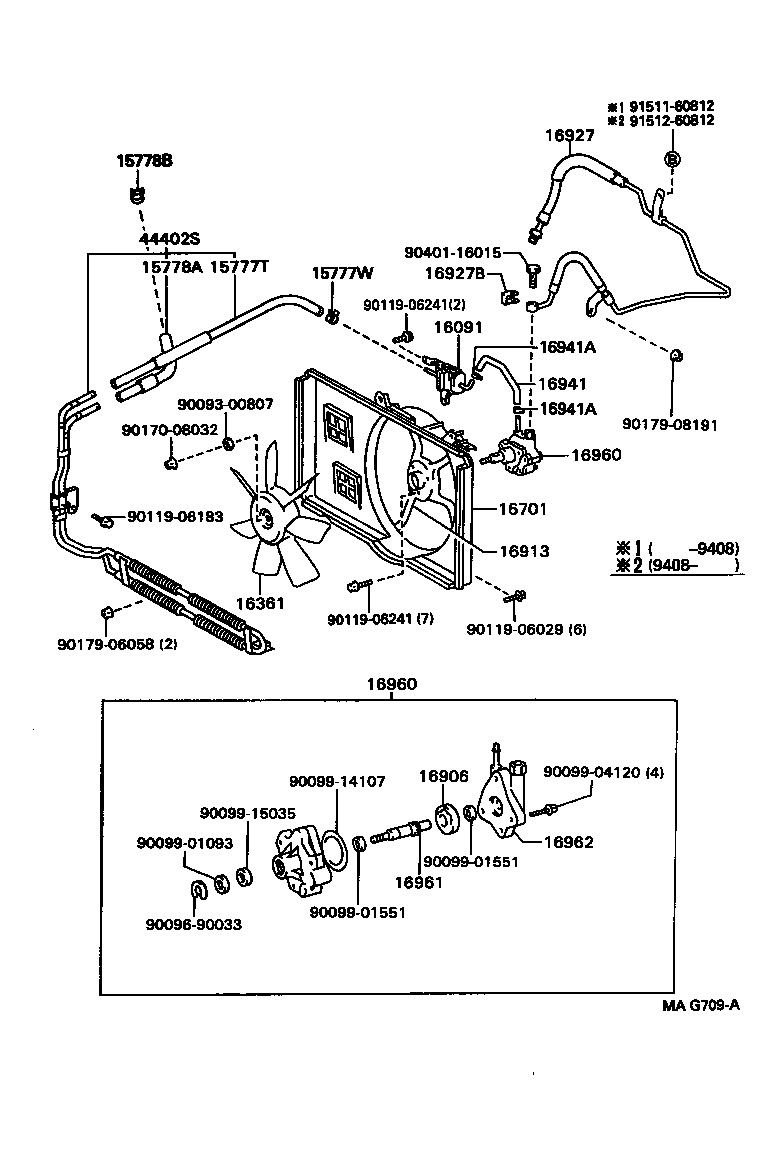

Код

Описание

15777T

HOSE, OIL COOLER, NO.1

15777W

CLIP(FOR OIL RETURN HOSE)

15778A

CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE, NO.2)

15778B

CLIP(FOR OIL RETURN HOSE)

16091

FILTER SUB-ASSY, HYDRAULIC MOTER OIL

16361

FAN

16701

SHROUD SUB-ASSY, FAN

16906

GEAR SET, HYDRAULIC

16913

STAY, HYDRAULIC MOTOR FAN SHROUD

16927

HOSE, HYDRAULIC MOTOR PRESSURE

16927B

GASKET(FOR PRESSURE HOSE)

16941

HOSE, HYDRAULIC MOTOR RETURN, NO.1

16941A

CLIP(FOR RETURN NO.1)

16941A

CLIP(FOR RETURN NO.1)

16960

MOTOR ASSY, HYDRAULIC GEAR

16960

MOTOR ASSY, HYDRAULIC GEAR

16961

SHAFT, HYDRAULIC GEAR MOTOR

16962

COVER, HYDRAULIC GEAR MOTOR

44402S

COOLER SUB-ASSY, OIL

9009300807

Крепеж

9009690033

Крепеж

9009901093

Крепеж

9009901551

Крепеж

9009901551

Крепеж

9009904120

Крепеж

9009914107

Крепеж

9009915035

Крепеж

9011906029

Крепеж

9011906183

Крепеж

9011906241

Крепеж

9011906241

Крепеж

9017008032

Крепеж

9017906058

Крепеж

9017908191

Крепеж

9040116015

Крепеж

9151160812

Крепеж

9151260812

Крепеж

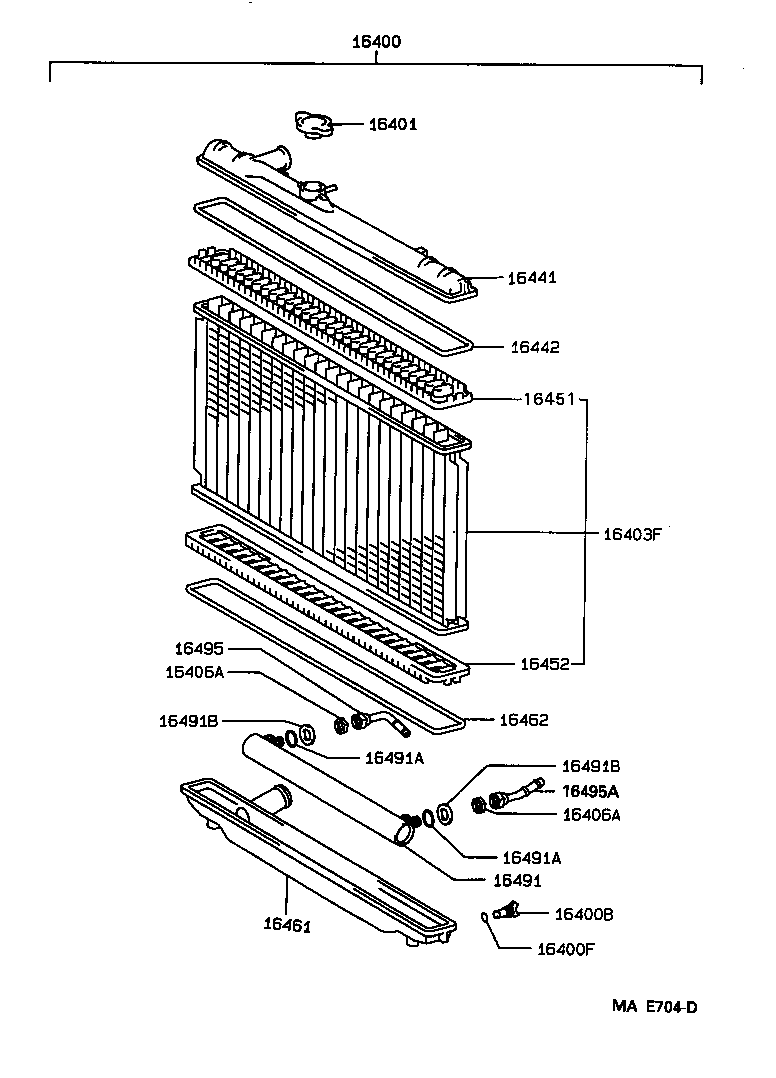

Код

Описание

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16403F

CORE SUB-ASSY, RADIATOR

16406A

SUPPORT(FOR OIL COOLER)

16406A

SUPPORT(FOR OIL COOLER)

16441

TANK, RADIATOR, UPPER

16442

RING, O(FOR RADIATOR UPPER TANK)

16451

PLATE, RADIATOR CORE, UPPER

16452

PLATE, RADIATOR CORE, LOWER

16461

TANK, RADIATOR, LOWER

16462

RING, O(FOR RADIATOR LOWER TANK)

16491

COOLER, OIL(FOR ATM)

16491A

RING, O(FOR ATM OIL COOLER)

16491A

RING, O(FOR ATM OIL COOLER)

16491B

WASHER, PLATE(FOR ATM OIL COOLER)

16491B

WASHER, PLATE(FOR ATM OIL COOLER)

16495

NUT, FLARE(FOR ATM OIL COOLER)

16495A

NUT, FLARE, NO.2(FOR ATM OIL COOLER)

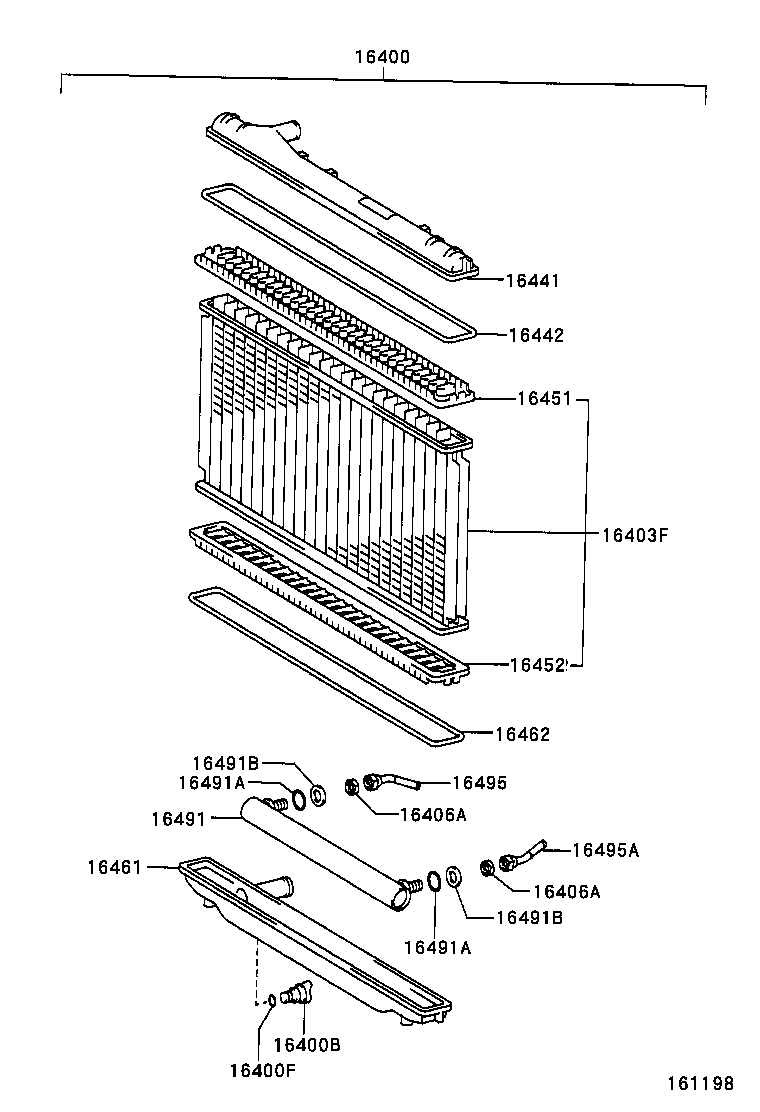

Код

Описание

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16403F

CORE SUB-ASSY, RADIATOR

16406A

SUPPORT(FOR OIL COOLER)

16406A

SUPPORT(FOR OIL COOLER)

16441

TANK, RADIATOR, UPPER

16442

RING, O(FOR RADIATOR UPPER TANK)

16451

PLATE, RADIATOR CORE, UPPER

16452

PLATE, RADIATOR CORE, LOWER

16461

TANK, RADIATOR, LOWER

16462

RING, O(FOR RADIATOR LOWER TANK)

16491

COOLER, OIL(FOR ATM)

16491A

RING, O(FOR ATM OIL COOLER)

16491A

RING, O(FOR ATM OIL COOLER)

16491B

WASHER, PLATE(FOR ATM OIL COOLER)

16491B

WASHER, PLATE(FOR ATM OIL COOLER)

16495

NUT, FLARE(FOR ATM OIL COOLER)

16495A

NUT, FLARE, NO.2(FOR ATM OIL COOLER)
